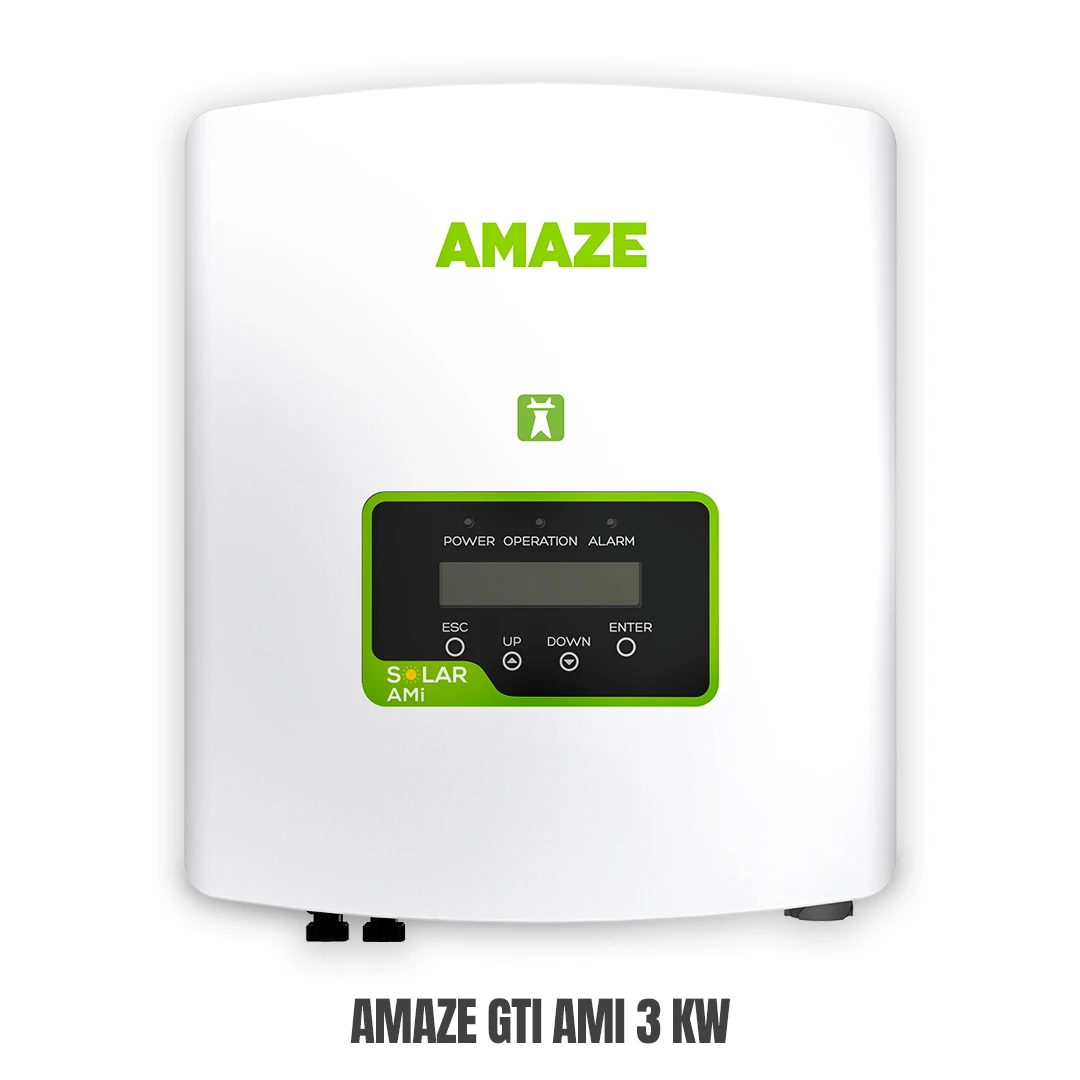

Grid Tie Inverter- AMI 130

AMI range from AMAZE allows smart management of Solar Power to deliver uninterrupted power for all electrical applications and excess remaining power is fed back to Grid. It is designed for high performance against the typically tough Indian grid conditions with IP 66 technology.

VA Rating 3KW
Max Efficiency
Advanced MPPT with Transformerless topology
Compact & Light Weight
150% PV side DC Overloading
Maximum Input current 16A
Warranty 8 Years

MRP: ₹72,000 Inclusive of all taxes

Quantity:

Enquiry Now

Expected Delivery in 5-7 Business Days.

Capacity

3KW
Technology

Transformer Less
Phase type

1 Phase
Warranty

8 Year standard

Feature:

Max Efficiency up to 97.2%.
Advanced MPPT with Transformerless topology.
Compact & Lightweight.
150% PV side DC Overloading.
Maximum Input current 16A.

Specifications
Application Area	Home, Office & Small Commercial Establishment
Rating	3KW
Technology	Transformerless
Rated O/P Power	3000W
Max O/P Power	3300W
Max DC Input Power	4.5 kW
MPPT Voltage Range	70-500V
Start Up Voltage	80V
MPPT/Max String	1/1
Net Weight (in kg.)	7.4
Dimension (in mm)	310W x 373H x 160D
Running Appliances	Electrical application & Grid Feed
Contents	1 N Inverter, 1 N Warranty Card, 1 N Manual
Warranty	8 Year Standard (For detailed terms and conditions of warranty please refer to the warranty card supplied along with the product)
Country of Origin	Made in China
Imported and Marketed By	Longlast Power Products Limited, Plot No. 94, Sector-5, Pocket N1, Bawana, Delhi 110039
Customer Care Details	Longlast Power Products Limited, Plot No. 94, Sector-5, Pocket N1, Bawana, Delhi 110039, Ph.: 9999933039, Email Id: care@amaze-india.com
